| Manufacturer | Innovo |
| Driver Name | Innovo Activation - ELAN |
| Driver Version | 26.07.13.00 |
| Document / Driver Revision | 26.07.13.00 |
| Core Min / Max Tested | 8.8.xx |
The Innovo Activation driver registers this ELAN controller with the Innovo cloud and activates the Innovo license for the project. It must be installed and successfully licensed before any other Innovo drivers can operate.

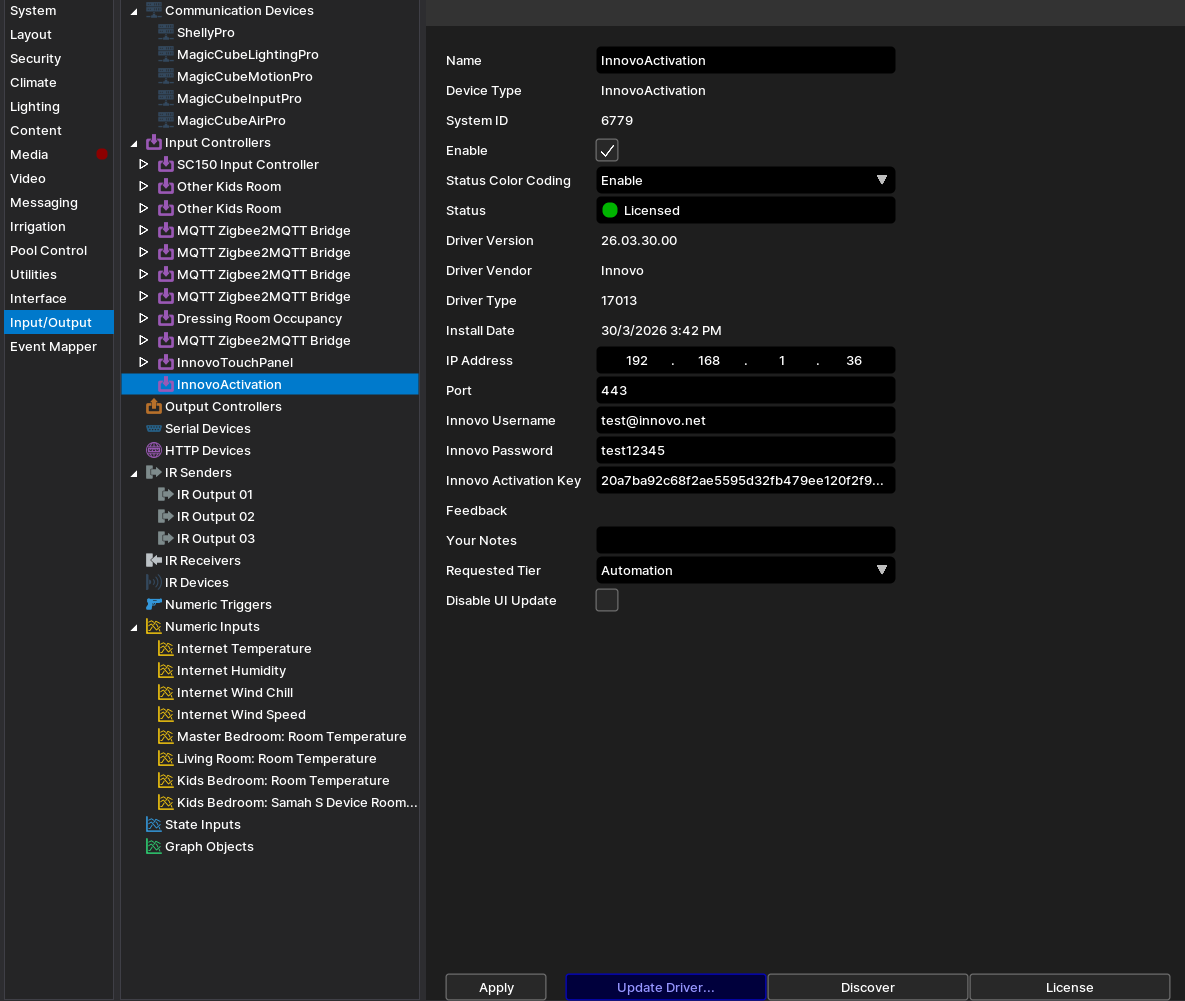

Licensed.The following fields appear on the driver's configuration page in ELAN Configurator:
| Field | Description |
|---|---|
| IP Address / Port | IP address of the Magic Cube, set automatically by discovery when using the Magic Cube activation method. The port defaults to 443; do not change unless instructed by Innovo support. |
| Innovo Username | Your Innovo dealer account email address. Required for Auto with Account. |
| Innovo Password | Your Innovo dealer account password. Required for Auto with Account. |
| Innovo Activation Key | The license key. Populated automatically after a successful activation, or entered manually for Manual with Activation Code. |
| Project Name | The project name stored with the controller registration. |
| Activation Method | How the license is activated: Auto with Account, Manual with Activation Code, Using the Magic Cube, or Key From Distributor. |
| Requested Tier | The license tier to request: Automation, Music, or Full. Select the tier that matches your Innovo subscription. |
| Feedback | Read-only. Shows the result or error messages from the last activation attempt. |
| Your Notes | Free-text field for project-specific notes. Not used by the driver. |
NOTE: The driver's device state tile in Configurator shows
LicensedorNot Licensed. While the driver is behind the latest published version, the tile showsUpdate to the latest Activation Driver to continue.instead, and activation is blocked.
The single button on the driver's configuration page. It validates the required inputs for the selected Activation Method, updates the controller registration, and then activates the license:
NOTE: After a successful activation the device state shows
Licensedand the license key is saved to the Innovo Activation Key field. If activation fails, the Feedback field displays the reason.

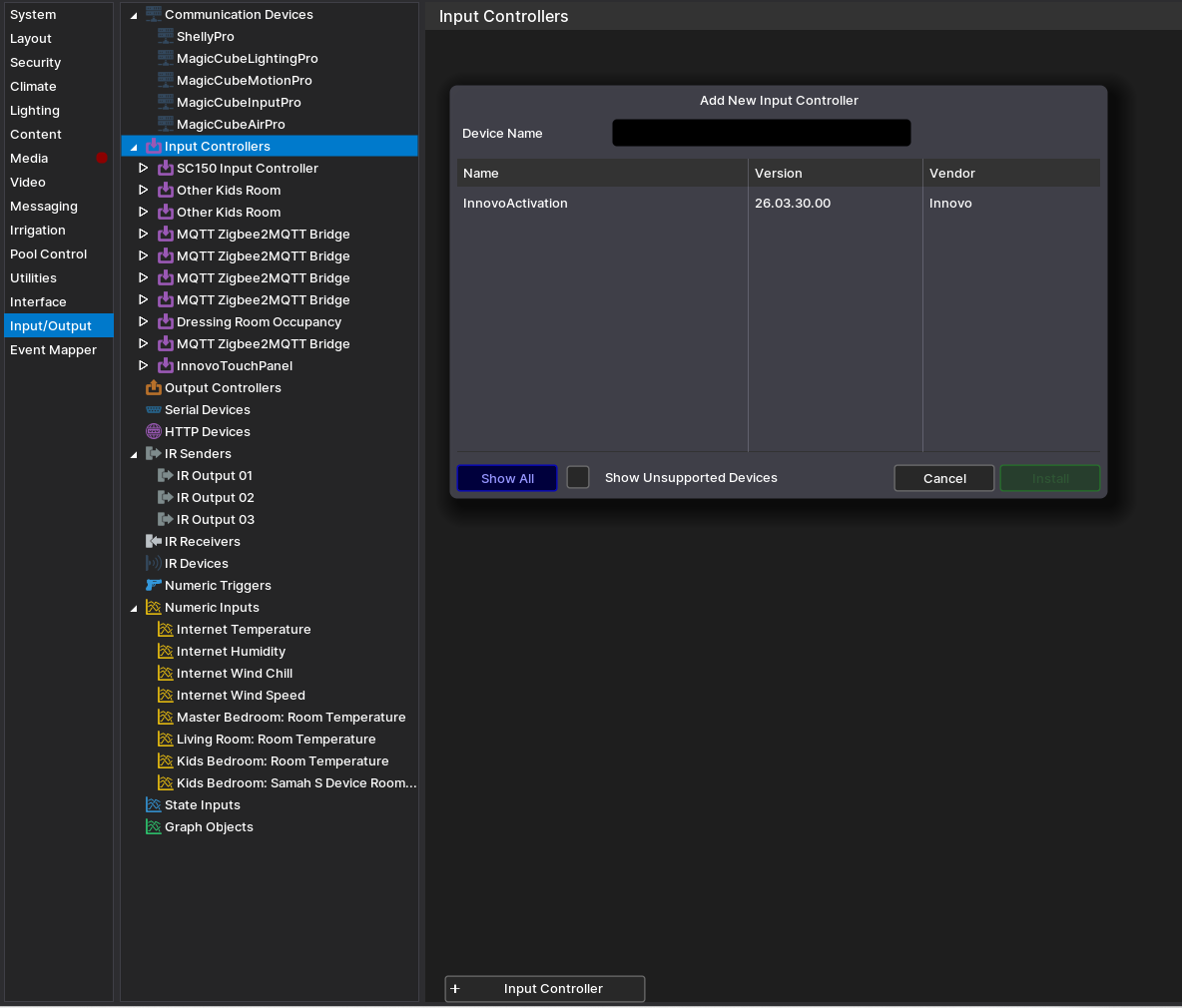

InnovoActivation.EDRV under the Input/Output tab.Licensed and that the Innovo Activation Key field has been populated.NOTE: If the selected tier is incompatible with your license, the activation server returns an error in the Feedback field. Change the Requested Tier and click Save & Activate again.
| Message / Symptom | Resolution |
|---|---|
Update to the latest Activation Driver to continue |
This driver is older than the latest published version. Download the latest InnovoActivation.EDRV, update it in Configurator, and click Save & Activate again. |
No Magic Cube has been discovered |
Ensure the Magic Cube is powered on and connected to the same local network as the ELAN controller, then click Save & Activate again. |
Device is not found / Magic Cube is offline |
The driver reached the Magic Cube IP but did not receive a valid response. Verify the IP address is correct and that the cube is reachable from the controller. |
Username and Password must be set / Enter an Activation Key first |
The selected Activation Method is missing its required inputs. Fill in the dealer credentials (Auto with Account) or the activation key (Manual with Activation Code) and try again. |
invalid_credentials |
The Innovo Username or Password is incorrect. Double-check your dealer account credentials on the Innovo portal and try again. |
controller_already_licensed |
This controller is already licensed. The driver automatically retrieves and saves the existing license key. No action is required. |
This controller is already activated with key: ... |
A key was submitted for a controller that is already licensed. The driver keeps the controller's original key (shown in the message) and saves it to the Innovo Activation Key field; the submitted key is not consumed and remains available for another controller. |
| Device state shows Not Licensed after reboot | Click Save & Activate to re-validate. With a stored key, use Manual with Activation Code; otherwise use your dealer credentials. |
Innovo Activation Driver (ELAN) v26.07.13.00 — Innovo • innovo.net
